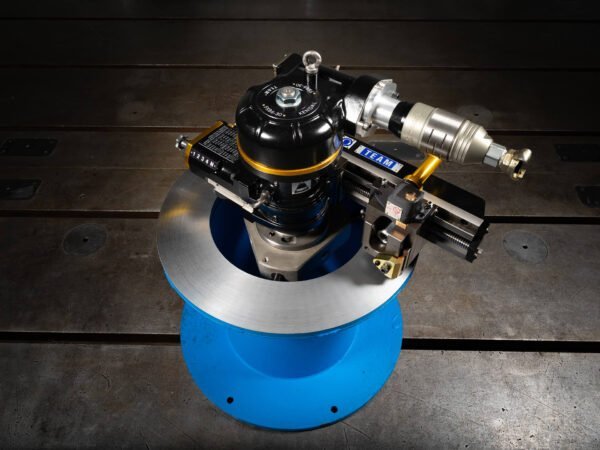

FXB6-30 Internal Mounted Flange Facer

The FXB6-30 Flange Facer is modular, compact, and of lightweight construction, designed to resurface flanges ranging from 153 mm (6") internal diameter to 762 mm (30") external diameter.

Machine Features:

+ Range 6” to 30” (152.4mm to 762mm)

+ Proven durability over many decades

+ Automatic feed

+ Ergonomically designed

+ Quick set-up

PART No. FMG55-599-000193

Add to Quote

The FXB6-30 Flange Facer is modular, compact, and of lightweight construction, designed to resurface flanges ranging from 153 mm (6") internal diameter to 762 mm (30") external diameter. It is internally mounted and comes as standard with three clamping modules. Driven by a 1.7kW (2.3hp) pneumatic motor, this machine is a true workhorse.

Additional versatility is offered by the dovetail slide mounted tool post, which may be swivelled when machining V grooves.

The durable feed gearbox on this machine offers four automatic feed rates to ensure accurate machine settings for a variety of surface finishes. The capability of the machine can be expanded via a host of “Bolt-on” extras which are available on request.

Facing Range
Minimum Diameter153mm6"
Maximum Diameter762mm30"
Clamping Range
Minimum Diameter153mm6"
Maximum Diameter711mm28"
Rotational Clearance
Minimum Diameter635mm25”
Maximum Diameter813mm32”
Machine Height Above Flange352mm13.9”
Toolpost Travel40mm1.6”
Recommended Air Supply6Bar @ 1.8m3 /min64cfm @ 87psi
Noise Emission (Sound Power Level)107dB(A)
Feed Rates/Position
10.18mm0.007”
20.25mm0.010”
30.46mm0.018”
40.84mm0.033”
Weights
Machine Weight62kg136.7lbs
Transportation Weight143kg315lbs
Transportation Dimensions
LengthWidthHeight
950mm / 37.4”530mm / 20.9”545mm / 21.5”
Optional Extras
V-Groove Machining KitKIT01-599-000082
V-Groove Measuring KitKIT01-599-000083
V-Groove Measuring Kit (Vernier Height GaugeKIT01-599-000113
Tube Sheet Machining KitKIT01-599-000086
Tube Sheet Mounting KitKIT01-599-000085
Lens Ring Machining KitKIT01-599-000084
Slide Arm - 18”KIT01-599-000037
2 Years Recommended Spares KitKIT01-599-000007
TEAM® ToolkitKIT01-599-000130
TEAM® Pneumatic Safety Unit (PSU)KIT01-599-000132
